Technical Architecture

Network Topology

The CertChain network runs across 4 OpenShift namespaces, each containing a subset of the Fabric blockchain components and application services.

Network Topology

Namespace Layout

Namespace Components

certchain

Fabric CA, orderer0, cert-portal, verify-api, central Keycloak, Postgres, Grafana

certchain-techpulse

peer0, orderer1, CouchDB, certcontract (CcaaS), Postgres, org Keycloak, cert-admin-api, course-manager-ui

certchain-dataforge

peer0, orderer2, CouchDB, certcontract (CcaaS), Postgres, org Keycloak, cert-admin-api, course-manager-ui

certchain-neuralpath

peer0, orderer3, CouchDB, certcontract (CcaaS), Postgres, org Keycloak, cert-admin-api, course-manager-ui

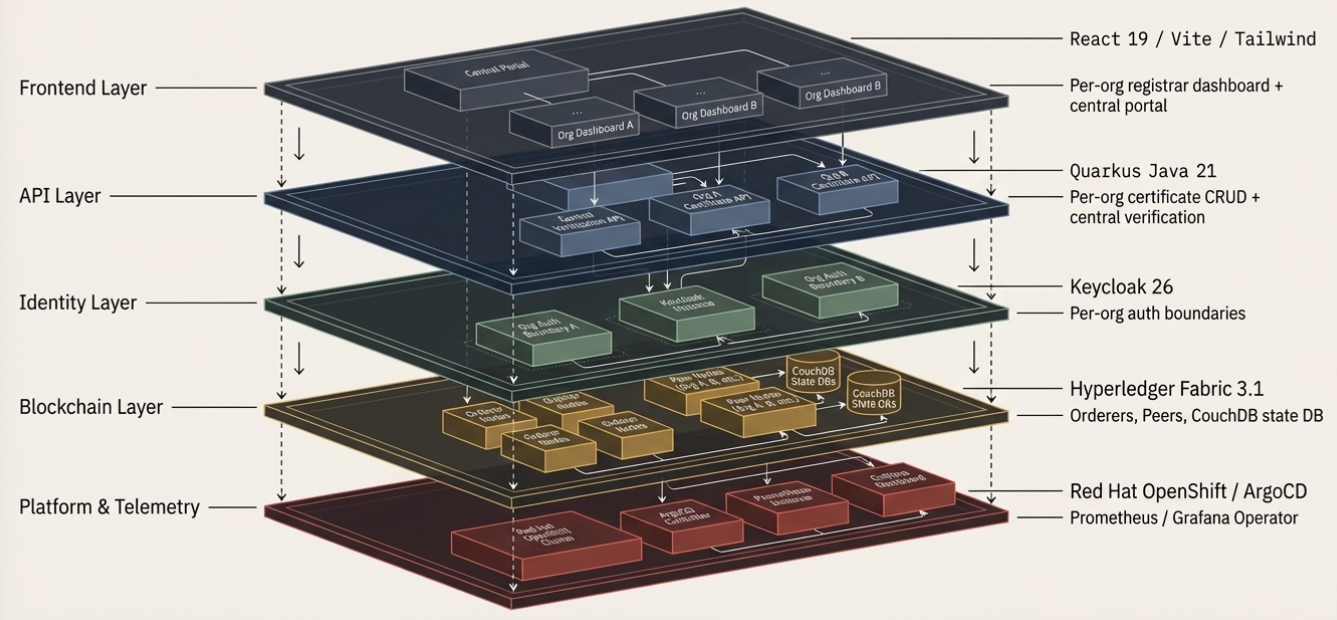

Technology Stack

Technology Stack
Layer Technology

Blockchain

Hyperledger Fabric 3.1, SmartBFT consensus, CouchDB state database

Chaincode

Go (CcaaS — Chaincode as a Service)

APIs

Quarkus 3.x (Java 21) — cert-admin-api, verify-api

UIs

React + Vite — course-manager-ui, cert-portal

Identity

Keycloak 26 with OIDC, identity brokering, organizations

Deployment

Helm App-of-Apps → ArgoCD on OpenShift

Monitoring

Prometheus ServiceMonitors + Grafana Operator

Certificate Lifecycle

Every certificate goes through a well-defined blockchain transaction lifecycle — from issuance through optional revocation.

Certificate Lifecycle

Issue Flow (Write Path)

  1. Submit — Registrar fills the certificate form in the Course Manager UI

  2. API Call — cert-admin-api receives the request with a JWT bearing the org-admin role

  3. Endorse — The Fabric peer simulates the chaincode and signs the proposal (read-write set)

  4. Order — The SmartBFT orderer cluster (4 nodes) agrees on block ordering

  5. Commit — All peers validate and persist the block to their local ledger

  6. Index — CouchDB world state is updated for rich queries

Verify Flow (Read Path)

  1. Enter ID — Anyone enters a certificate ID on the cert-portal (no login required)

  2. Query — verify-api evaluates the transaction via the Fabric Gateway

  3. Read Ledger — The peer reads from CouchDB (no new transaction is created)

  4. Result — Returns VALID, REVOKED, EXPIRED, or NOT_FOUND with public fields only

Revoke Flow

  1. Revoke — Admin clicks Revoke in the Course Manager (irreversible)

  2. New Tx — A new blockchain transaction records the status change

  3. Status → REVOKED — All subsequent verifications return REVOKED

Revocation is irreversible — the blockchain audit trail is permanently preserved. There is no "un-revoke" operation.

Public vs Private Data

Field Public (anonymous) Private (cert owner)

Status (VALID/REVOKED)

✓

✓

Student Name

✓

✓

Course Name

✓

✓

Organization

✓

✓

Issue / Expiry Date

✓

✓

Grade

✗

✓

Degree

✗

✓

Student ID (email)

✗

✓

Privacy enforcement is server-side in the verify-api. The JWT email claim is matched against the certificate’s studentID to determine ownership.

Identity Architecture

CertChain uses a federated identity model with Keycloak identity brokering across organizations.

Identity Architecture

Identity Brokering Flow

  1. User clicks Sign In on the cert-portal → redirected to Central Keycloak

  2. Central Keycloak shows the organization picker → user selects their org

  3. Redirected to the org’s Keycloak instance → authenticates with org credentials

  4. Token returned to the application with org-specific claims

Fabric MSP (Membership Service Provider)

Each organization has its own MSP with X.509 certificates:

  • admin-msp — Organization administrator identity (for chaincode operations)

  • peer0-msp / peer0-tls — Peer node identity and TLS certificates

  • orderer-msp / orderer-tls — Orderer node identity and TLS certificates

The Fabric CA in the central namespace issues all certificates for this demo. In a production deployment, each organization would run its own CA for full PKI independence. Each organization’s MSP defines which identities are authorized to submit transactions on behalf of that organization.
